CASE REPORT

Damon Ultima™: Precision in Bracket Placement for Smile Arc and Torque Control.

A 38-year-old male patient sought orthodontic treatment with both functional and esthetic concerns. His main complaints included the appearance of an inverted smile arc, reduced incisor display, and a general lack of harmony in his smile.

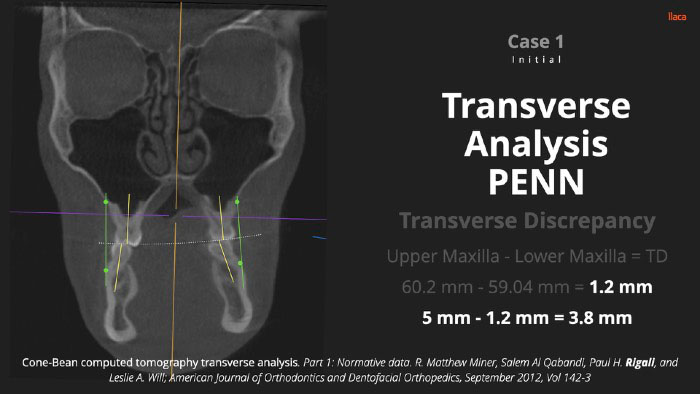

The extraoral examination revealed a long facial type with an increased lower facial third, nasolabial folds accentuated by insufficient midface support, and broad buccal corridors due to maxillary compression. Intraoral analysis showed a posterior crossbite, negative torque on posterior teeth, and an altered occlusal balance. Radiographic and cephalometric evaluation confirmed the clinical findings, with an increased mandibularplane angle and mandibular posterior rotation. This rotation contributed to a convexity of +4 mm, although the underlying problem was a retruded maxilla with insufficient midface support. Vertical facial height was also increased. Importantly, the temporomandibular joint evaluation showed a posterior condylar position with intact cortical bone, no pain, and no joint sounds.

BEFORE
AFTER

Dr. Iciar Llaca*, Spain

Dr. Iciar Llaca (Oviedo, Spain) is an orthodontist dedicated to excellence in facially guided orthodontics, esthetics, and functional occlusion. She directs LLACA Ortodoncia, a family practice founded in 1984, and is the founder of LLACA Masterclass, an international educational platform for orthodontists. With extensive experience in self-ligation, Damon System and Spark aligner, Dr. Llaca lectures internationally on advanced biomechanics, smile design, and finishing strategies.

(Images: Intraoral Initial)

Treatment objectives and plan

The objectives of treatment were clearly defined:

  • Restore a harmonious smile arc and improve anterior esthetics.
  • Correct the transverse deficiency and posterior crossbite.
  • Address negative torque and improve posterior support by developing the arch.
  • Maintain vertical control to prevent open bite tendencies.
  • Achieve long-term functional stability and balanced facial esthetics.

To achieve these goals, the Damon Ultima system was selected for its precision in torque control and its capacity for individualized bracket selection. A Smile Arc Protection (SAP) strategy guided bracket placement from the start, combined with careful archwire sequencing and progressive mechanics.

Planning

Diagnosis

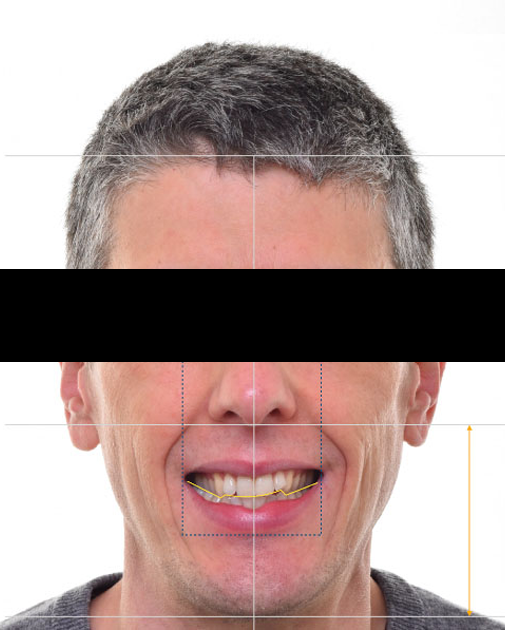

Facial Esthetics

  • Increased lower facial third.
  • Low smile line
  • Limited display of upper incisors
  • Inverted smile arc.
  • Mild maxillary constriction.
  • Lack of malar projection with pronounced nasolabial folds.
  • Retrusive profile

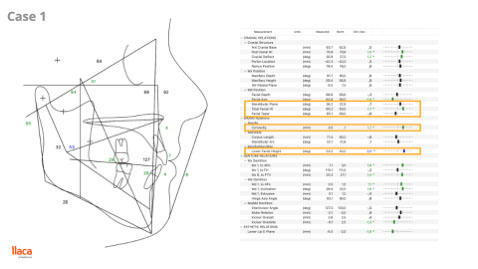

Skeletal problem

  • Skeletal Class I with mandibular posterior rotation
  • +4 mm convexity
  • Lower facial heights: 53°

Functional occlusion

  • Maximum Intercuspation: Right posterior crossbite
  • CR: First contact on tooth #17
  • Flattened Curve of Wilson
  • Mild dental wear on tooth #23
  • Midlines centered
  • Class I molar and canine relationship
  • Negative torque values
  • Edge-to-edge incisors
  • Tendency toward open bite

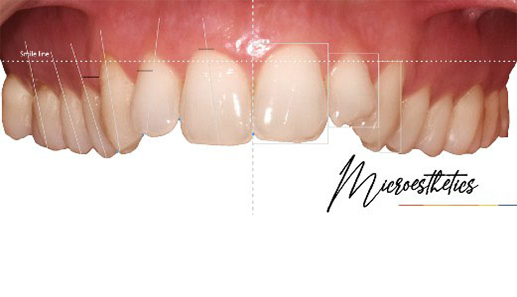

Dental Aesthetics

  • Irregular tooth shapes
  • Fracture on tooth #22
  • Gingival height discrepancies
  • Inverted smile arc

Periodontal Health

  • Periodonto medio

Planning

Treatment plan

0%

Orthognathic Surgery expansion with TAD’s

We don’t see it as a treatment option in this case

50%

Expansion with light forces

Molar intrusion to correct the open bite

25%

Occlusal Management

25%

Stripping B

Planning

Treatment

Initial

  • Bonding guided by the smile arc
  • Centrals at 5.5 mm, laterals at 5.2 and canines at 5 mm
  • Archwires: 0.14 CuNiTi
  • Vertical control with posterior bite turbos: places on #37 and #47, adjusted in CR
  • Cross elastics: on #16 and #26, light force-Quail 2 oz., 1/8″

Damon Ultima Wire

  • 4 Months
  • .014 x .0275 CuNiTi archwires
  • Progress Photos – Set 2

Full expression

  • 6 months of treatment
  • .018 x .0275 CuNiTi archwires
  • Vertical elastics: to support the development of the smile arc
  • Progress Photos – Set 3

Planification

Treatment

Pano – repo

  • 8 months
  • Panoramic X-ray
  • Rebonding from #13 to #23
  • Enamel recontouring
  • Occlusal equilibration
  • Smile easthetics evaluation: the smile arc still needs improvement
  • .016 NiTi archwires
  • Progress photos – set 4

Damon Ultima Wire

  • 10 Months
  • .018 x .0275 CuNiTi archwires

Finishing

  • 12 months
  • .019 x .0275 Stainless Steel archwires
  • Progress Photos – Set 5

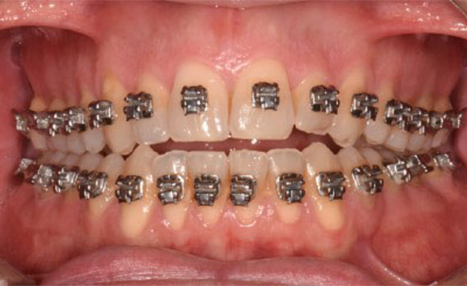

Case development

From the outset, bracket placement was the cornerstone of the treatment strategy. The upper central incisors were bonded 1–1.5 mm more gingivally than the canines, with laterals slightly lower, to recreate a natural curvature and protect the smile arc. Variable torque brackets were selected individually for each anterior tooth, according to its specific requirements. This feature of the Damon Ultima system represents a significant advantage: it combines the low-friction benefits of self-ligation with earlier expression of anterior torque. When paired with the rapid arch development characteristic of the system, this approach allows for the ideal torque to be achieved very early in treatment. As a result, proclination of the incisors is effectively avoided while maintaining efficient alignment.


The initial alignment was performed with light CuNiTi archwires, promoting gradual expansion and alignment while avoiding heavy forces. Progressively, the treatment advanced to the final 0.018 x 0.0275 stainless steel archwires, ensuring full torque expression and establishing control over the occlusal plane.

Given the patient’s vertical pattern and open bite tendency, posterior bite turbos were incorporated early to control extrusion and stabilize the vertical dimension. As treatment progressed, refinements included rebonding the upper anterior brackets to fine-tune torque and smile arc display. Crossbite elastics were also introduced to correct the transverse discrepancy in a controlled manner.

Development of the arch and the consequences in the Occlusion

Initial Bonding

Archwires: .014 CuNiti

Vertical Control with posterior BiteTurbos adjusted in CR on teeth 37 and 47

Cross Elastics on teeth 16 and 26 light force: Quail 2 oz. 1/8”

4 Months
CuNiti .014x.0275

6 Months
CuNiti .018x.0275

9 Months AFTER PANO – REPO

Better smile arc

The final 4 months were focused on arch coordination and detailling.

Individually coordinated stainless steel archwires, using the WALA ridge described by Dr. Andrews as the reference

(image: Finishing wires)

Results

After 16 months of treatment, the transformation was evident:

  • Posterior torque was normalized, correcting the crossbite and improving occlusal support.
  • The smile arc was restored, with proper incisor display and enhanced microesthetics.
  • Vertical dimension was stabilized, avoiding any increase in anterior open bite tendency.
  • Overall macro-, mini-, and micro-esthetics were improved, with reduced buccal corridors and balanced anterior proportions.

(Image: 2 years after finishing)

Discussion and Summary

This case demonstrates how precision in bracket placement and variable torque selection with Damon Ultima can fundamentally influence treatment efficiency and outcomes. By addressing torque control and smile arc from the very first appointment, round-tripping was minimized, biomechanics were optimized, and finishing required only fine adjustments rather than compensations.

The Damon Ultima system allowed the clinician to align facial esthetics, occlusal function, and long-term stability in a challenging adult case, underscoring the value of intentional planning and execution.

Conclusion

Orthodontic success depends not only on wire sequences or finishing mechanics but on the strategic decisions made at the bonding appointment. In this case, Damon Ultima provided the control necessary to achieve predictable, efficient, and esthetically pleasing results.

Interested in learning more about Damon Ultima?

MKT-25-1390

* Dr. Iciar Llaca is a paid consultant for Ormco. The opinions expressed are those of Dr. Iciar Llaca. Ormco is a medical device manufacturer and does not dispense medical advice. Clinicians should use their own professional judgment intreating their patients.
